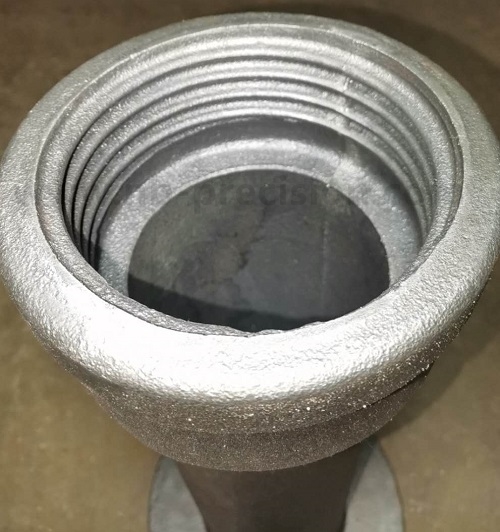

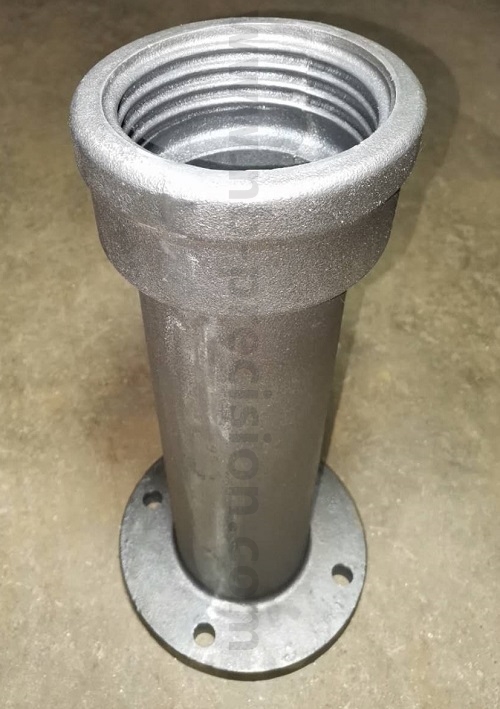

Custom Gray Iron Casting Standpipe with thread

Material: 0.6020 (EN-GJL-200)

Processes: Sand Casting + CNC machining

Dimension: dia. 220 x 460mm

Weight: 15.8kgs

Thread pitch: 10mm

Custom Gray Iron Casting Parts

Gray Iron has a dense gray structure and offers excellent machinability. Grades 25, 30, 35 and 40 can fill specific requirements for hardness and wear, and heat treatments can yield even higher mechanical properties. Popular applications for gray iron include diesel and gasoline engine blocks and cylinder liners, and structural machine components where vibration dampening is required.

Advantages of Gray Iron Castings

Gray iron castings are preferred when seeking a durable, low-cost solution, with heat dissipation, and high density.  Gray iron has a good fluidity and is easily machined.

Applications of Gray Iron Castings

Gray iron castings are manufactured very easily and have good machinability. They are typically used in the following applications where strength is important, but not the main required property:

    ·Weights & Counter Weights                          ·Compressors                        ·Powertrain Parts

    ·Suspension Components                               ·End Plates                             ·Valves and Fittings·Pulleys

    ·Sheaves                                                          ·Linkages                                ·Building facades

    ·Table legs and bases                                      ·Pumps                                   ·Brackets

    ·Housings                                                        ·Steering Knuckles
